How much space should a perfume box leave around the bottle?
About 2 mm each side for a carton with a card platform, and 8 to 10 mm all round for a rigid box with a foam insert. Too much space lets the bottle rattle.

Written prices from £0.25 a box. Free proof, made in 4–6 business days, free tracked UK delivery.
Perfume boxes cut to the exact bottle, cap included, as a folding carton or a rigid box with an insert. Printed in your colours, proofed for free and delivered tracked anywhere in the UK.

| Bottle | Carton, about | Rigid box with insert, about |
|---|---|---|
| 30 ml rectangular spray | 40 x 30 x 100 mm | 70 x 60 x 120 mm |
| 50 ml square spray | 55 x 55 x 120 mm | 90 x 90 x 140 mm |
| 100 ml tall spray | 60 x 40 x 150 mm | 100 x 80 x 170 mm |
| 10 ml atomiser | 25 x 25 x 95 mm | 60 x 50 x 115 mm |
Perfume boxes are the printed cartons or rigid cases a fragrance bottle is sold in.
They are made to the bottle's width and capped height, usually with a card platform or foam insert so the glass cannot move. You choose carton or rigid, board, print and finish, and we confirm it all on a written quote.
A perfume box is the printed carton or rigid case a fragrance bottle sells in.
It is the first thing a customer handles, before the glass and before the scent.
Perfume bottles are heavy for their size and nearly always glass. A 50 ml bottle with a metal collar and cap can weigh around 200 g, so the box has to hold it still.
That is why a perfume box is rarely a plain carton. Most have a card platform or an insert that grips the base of the bottle and stops the cap knocking the lid.
Independent perfume houses are the largest group we work with.
They tend to launch with two or three scents in 30 ml and 50 ml bottles, and need one box per scent.
Salons and barbers blend a house fragrance and sell it at the till. Market sellers and online shops decant into 10 ml atomisers and box those as well.
If you also sell oils, samples or sets, the full perfume and fragrance packaging range covers each of those formats.
Measure the bottle at its widest point, then the full height with the cap on.
Add about 4 mm to the width and 6 mm to the height for a carton with a platform.
Rigid boxes with an insert need more room, because the foam or card wall around the bottle takes up space. Allow 8 to 10 mm all round.
The table gives guide sizes from bottles we see often. Your bottle may differ by a few millimetres, so every box is cut to your figures rather than a stock size.
| Bottle | Carton, about | Rigid box with insert, about |
|---|---|---|
| 30 ml rectangular spray, 28 x 38 x 95 mm | 40 x 30 x 100 mm | 70 x 60 x 120 mm |
| 50 ml square spray, 50 x 50 x 115 mm | 55 x 55 x 120 mm | 90 x 90 x 140 mm |
| 100 ml tall spray, 55 x 35 x 145 mm | 60 x 40 x 150 mm | 100 x 80 x 170 mm |
| 10 ml atomiser, 20 x 20 x 90 mm | 25 x 25 x 95 mm | 60 x 50 x 115 mm |
A folding carton ships flat and costs less per unit.
It suits a brand selling through shops and online, where the box is opened once and often kept on a dressing table.

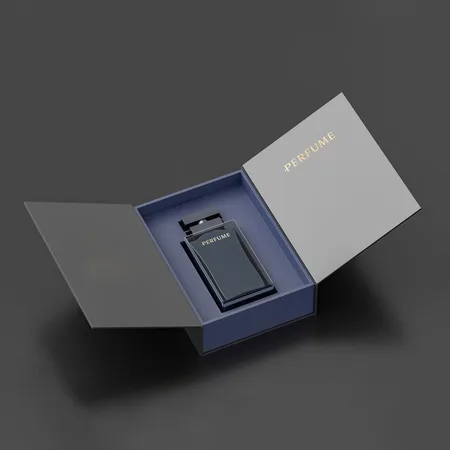

A rigid box is thick greyboard wrapped in printed paper. It arrives assembled, feels heavier in the hand and suits gift editions and premium lines.
Plenty of brands run both. The carton goes on the everyday 50 ml, while rigid perfume boxes with a printed wrap go on the 100 ml and the gift edition.
For cartons we usually suggest folding boxboard of about 350 to 400 gsm.
It is stiff enough to hold a 100 ml bottle upright without the panels bowing.
A straight tuck end is the standard closure. A reverse tuck end or an auto-lock bottom is worth asking for when the bottle is heavy and staff fill boxes by hand.

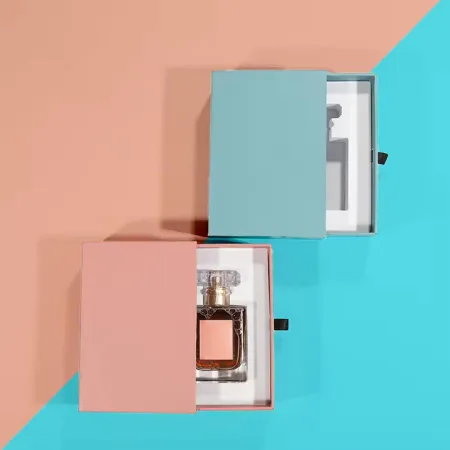

Rigid perfume boxes use greyboard of about 1.5 to 2 mm with a printed wrap. Lid and base, drawer, magnetic flap and sleeve and tray are all built this way, and the guide to cosmetic box styles shows each one. Board, rigid and finish options are available on request.
Perfume boxes are usually printed on every outer face.
The front carries the name, and the back carries the volume, the ingredient list and the responsible person's UK contact details.
Full colour CMYK handles photography and gradients. One or two colour print on white or kraft board looks clean on a short run and keeps the quote down.
As options, soft touch lamination gives a velvet feel, foil stamping adds a metallic name, and spot UV lifts a pattern off a matt ground. Our guide to foil, spot UV and soft touch shows how each one looks on board.
Glass and the post do not mix well.
A bottle loose in a carton will crack the carton corners, and a bottle loose in a rigid box will chip its own cap.
A card platform cut to the bottle base is the cheapest fix for cartons. Foam inserts cut to the bottle outline suit rigid boxes. Both are available on request.
If you post direct to customers, put the perfume box inside an outer mailer rather than sticking a label on it. Our cosmetic mailer boxes for posting beauty orders are sized to take a boxed bottle with padding.
On a shop shelf a perfume box stands upright in a row.
A tall, narrow front with the name in the top third reads from across the room.
On a salon counter boxes are often laid flat or stacked. Print the top panel as well, so a stack still shows the brand from above.
A window cut-out shows the bottle, but it also lets light reach the liquid. Most perfume brands skip the window and print a photo of the bottle instead.
The usual error is sending the bottle volume rather than its measurements.
A 50 ml bottle can be 95 mm or 130 mm tall depending on the cap.
Another is ordering before the cap and pump have arrived. Box the finished bottle, not the one on the mock-up.
A third is cramming the back panel. The volume, batch and contact details must be there, but tiny type on a 40 mm wide panel is hard to read. Keep the ingredient list in a clear 6 pt or larger.
Five steps take a bottle from your desk to a finished box.
Pricing starts from £0.25 per unit and every quantity is quoted per order.
The written quote lists the box, board, print and delivery, and nothing is printed until the proof is approved.
If a box arrives misprinted or damaged, send photos within 10 days and we reprint or refund. Start with the perfume box quote request form or WhatsApp a photo of the bottle.
Choose a real photo of the box you have in mind, put your logo on it, pick a colour and finish, and send it over. Our designers turn it into a free, print-ready proof.

The more we know about what goes inside, the bottle or jar, the quantity and the look you are after, the sharper the price. A packaging specialist replies within one business day with a written quote and a free design proof.
Not answered here? Call +44 7578 382054, message our packaging team on WhatsApp or email info@thecosmeticpackaging.co.uk.
About 2 mm each side for a carton with a card platform, and 8 to 10 mm all round for a rigid box with a foam insert. Too much space lets the bottle rattle.
Yes, a window cut-out is possible on folding cartons. Many fragrance brands avoid it because light reaches the liquid, and print a photo of the bottle instead.
Folding cartons arrive flat and creased, ready to pop open. Rigid perfume boxes arrive assembled with the insert fitted.
Yes, inside print is available on folding and rigid perfume boxes. A colour or pattern inside the lid is a cheap way to make the opening feel considered.
Folding boxboard of about 350 to 400 gsm is the usual choice. Kraft, metallic and textured boards are options, confirmed on your quote.
Rarely. A card platform or foam insert is the difference between a bottle that arrives still and one that cracks the corners. Both are available on request.
The artwork can be shared, but each bottle needs its own box size. We set up two sizes from one design and proof both.
Yes, foil stamping is an option in gold, silver, copper and other colours. It works best on a matt or soft touch ground.
Production is 4 to 6 business days after you approve the proof. Free tracked delivery then takes 2 to 3 business days to any UK address.
Quantities are quoted per order. Tell us how many you need and the written quote confirms the figure, from £0.25 per unit.
Every order starts with a free design proof on screen. If you need to see the box in hand, say so on the quote request and we will tell you what we can do.
Report it within 10 days with photos and we reprint or refund. Our reprints and refunds policy page sets out the steps.
