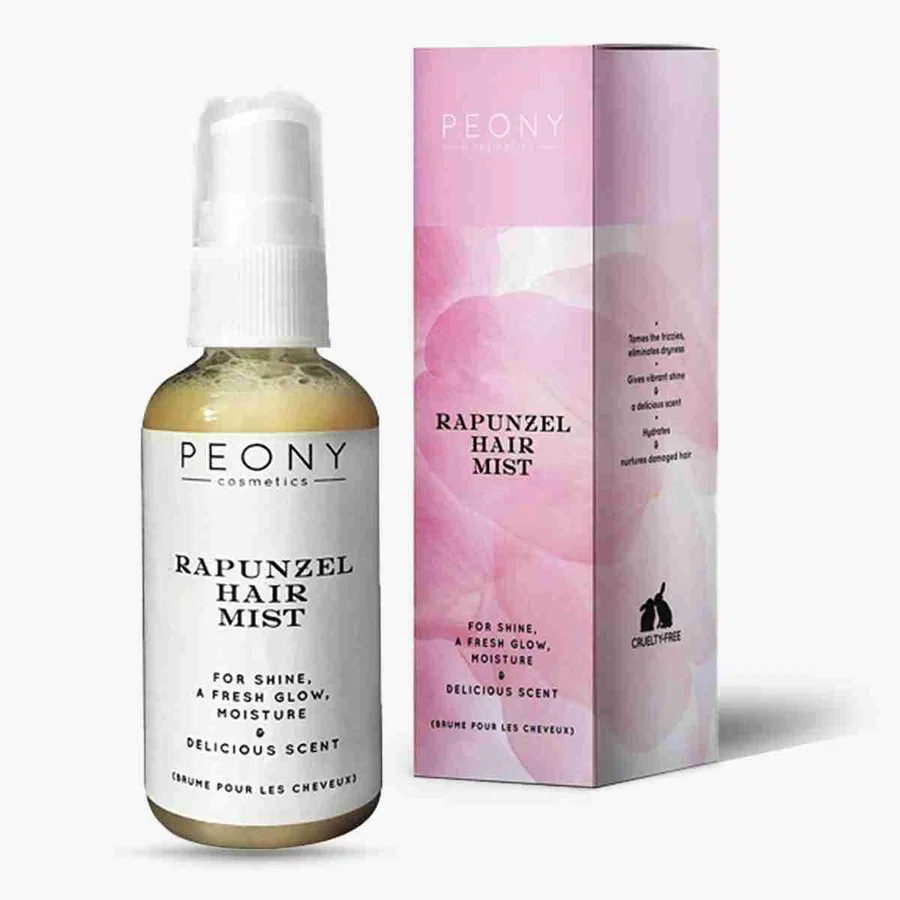

Custom Printed Hair Spray and Mist Boxes for Pump Bottles

A spray bottle carries a pump, a dip tube and usually an overcap, so the box is far taller than it is wide. A 100 ml mist that measures 44 mm across can stand 160 mm tall once the cap is on.

That shape changes how the carton behaves. A tall, slim box tips more easily, bends more along its length and needs a base that will not pop open when the bottle drops in.

So the cut, the crease positions and the base style all matter more than they would on a squat cream jar box. We take the measurements from your actual bottle rather than a catalogue figure.

The bottle may be amber glass, frosted glass or white plastic, and the pump may be a fine mist or a trigger spray.

Brands in this group often sit in our hair care packaging range for UK brands alongside shampoo bars and dryers.

• Hair growth and scalp sprays in 30 ml and 50 ml amber bottles
• Leave-in conditioning mists and detanglers in 100 ml and 150 ml
• Sea salt and texturising sprays for barbers and salons
• Heat protection sprays sold at the salon counter
• Shine and fragrance mists for Afro and curly hair ranges
• Beard and hair oil sprays in small glass bottles

Add about 2 mm to the width and depth and about 3 mm to the height.

For a round 100 ml mist that is about 44 mm wide and 160 mm tall with its cap, that gives a carton close to 47 x 47 x 165 mm. Oval bottles need a rectangular footprint, so measure both faces.

If you sell two or three bottle sizes, each needs its own carton. Our guide to common cosmetic box sizes in the UK lists the usual spray bottle footprints to check against.

The bottle weighs under 150 g full and the tuck flap takes that without trouble.

From 150 ml upwards the full bottle can pass 250 g. A straight tuck base can push open when the box is lifted by the top, which drops the bottle on the counter.

An auto-lock base folds into a locked platform as you square up the carton. It costs little more and it is the style we suggest for any spray above 100 ml, and for any glass bottle at all.

If the carton is a few millimetres too short, the top tuck presses the cap and the flap bows outward on the shelf.

If the box is too tall, the bottle slides up and down in transit and the cap can work loose. Three millimetres of clearance above the cap is the sweet spot.

For bottles without an overcap, a small card collar cut to the neck keeps the pump centred and stops the actuator rattling against the walls. Collars are made on request and sit inside the carton with no glue.

That weight stays rigid along a 200 mm height without bowing, which thinner card will not.

Kraft board suits natural scalp and oil ranges, and a textured or linen board is available as an option for salon brands. Board, rigid and finish options are available on request.

Print runs across all four tall panels. A full colour pattern wraps well on this shape, and a matt lamination with a foil logo gives a quieter counter look. The details of each finish are covered in our guide to foil, spot UV and soft touch finishes.

A narrow front window shows the bottle colour and the liquid level, which helps a tinted hair oil spray or a glitter shine mist stand out.

Keep the window low on the panel, below the shoulder of the bottle, so the cut does not weaken the top tuck. A window on a tall box also needs a film backing, which we add as an option.

Leave the window out if the bottle is plain white plastic. There is nothing to see, and you lose panel space that could carry the product name.

The carton has to cope with both.

For single orders the carton goes inside a mailer, and the auto-lock base stops the bottle breaking through if the parcel lands upside down. For trade cases, a snug fit matters more, because loose bottles knock the pump heads together.

If your bottle has a smooth cap that pulls off easily, ask about a tissue wrap or a collar. Both are available on request and both keep the pump where it should be.

1. Measuring the bottle without the cap, then finding the carton is 20 mm short on delivery of the pumps.
2. Choosing a straight tuck base for a 200 ml glass bottle that then drops through it at the till.
3. Running small text up the side panels at 6 pt, which no one can read on a tall narrow box in a salon.
4. Putting a full colour photo on a kraft board carton, where the brown base dulls the image.
5. Forgetting the batch number and volume marking, which has to fit somewhere on the pack.

The box carries the name and the claim at reading height, and it stays clean while the tester bottle gets used.

Many salons order one carton design for their own-label mist and change only the colour of the front panel for each scent. That keeps the die the same and the price steady.

For a marketplace listing, the carton is the first thing the buyer photographs, so put the product name on the front and the directions on the back where a camera can catch them.

Our designers lay the panels out for free and you receive a proof to approve before any ink goes down.

Pricing is quoted per order from £0.25 per unit, and the written quote sets the exact figure for your size, board and finish. After approval, printing takes 4–6 business days and the cartons travel on free tracked delivery to any UK address in 2–3 business days.

If a batch arrives misprinted or damaged, send photos within 10 days and we reprint or refund. To start, send your bottle details through our quote request for printed cosmetic boxes.
